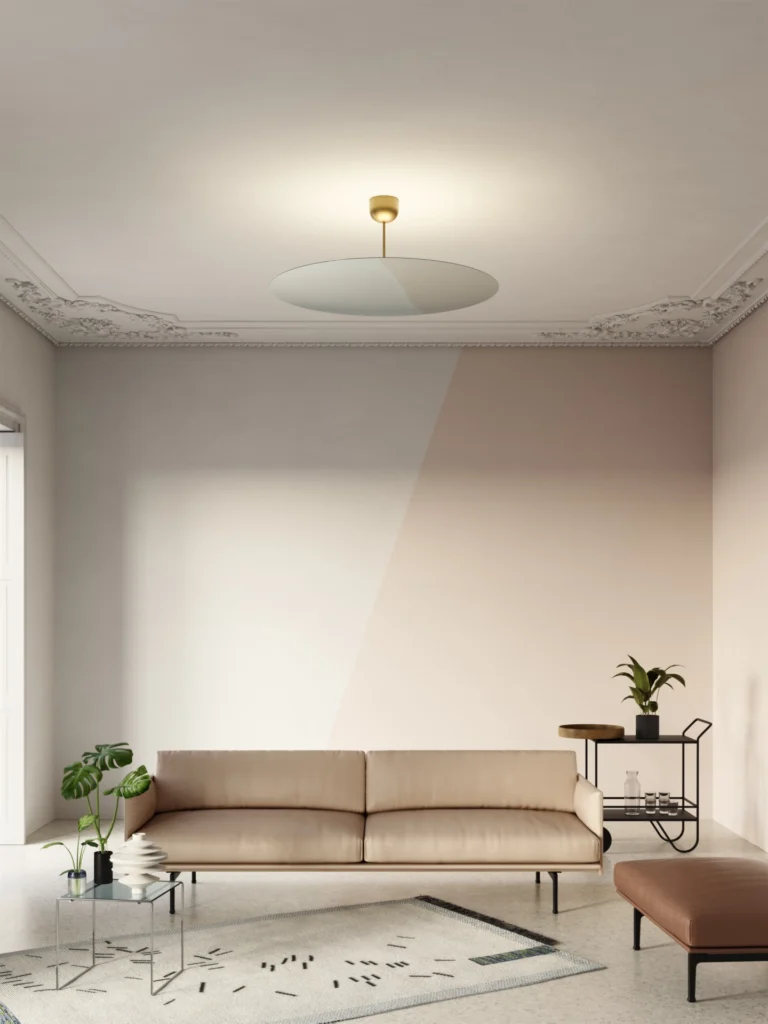

  • Millimetro #3
  • Millimetro #4

MillimetroCeiling

designed by Daniel Rybakken

Halfway between a pendant and a ceiling lamp, Millimetro is composed of a very thin reflecting circular disk (1 mm thickness) and warm, enveloping light directed upward from below. The upper cap is attached to a stem that supports the metal disk with a mirror finish. The LED light source, concealed behind the disk, provides a diffused, uniform glow. To respond to various installation requirements, it is possible to choose from four different lengths for the stem that connects the body of the lamp to the ceiling attachment.

Models

A11S50W A11/2 – 50

Millimetro Ceiling
stem 23cm – disc Ø 50cm

Discover

A11S50W A11/3 – 50

Millimetro Ceiling
stem 33cm – disc Ø 50cm

Discover

A11S50W A11/4 – 50

Millimetro Ceiling
stem 53cm – disc Ø 50cm

Discover

A11S50W A11/5 – 50

Millimetro Ceiling
stem 73cm- disc Ø 50cm

Discover

A11/2 A11S85W

Millimetro Ceiling
stem 23cm – disc Ø 85cm

Discover

A11/3 A11S85W

Millimetro Ceiling
stem 33cm – disc Ø 85cm

Discover

A11/4 A11S85W

Millimetro Ceiling
stem 53cm – disc Ø 85cm

Discover

A11/5 A11S85W

Millimetro Ceiling
stem 73cm – disc Ø 85cm

Discover

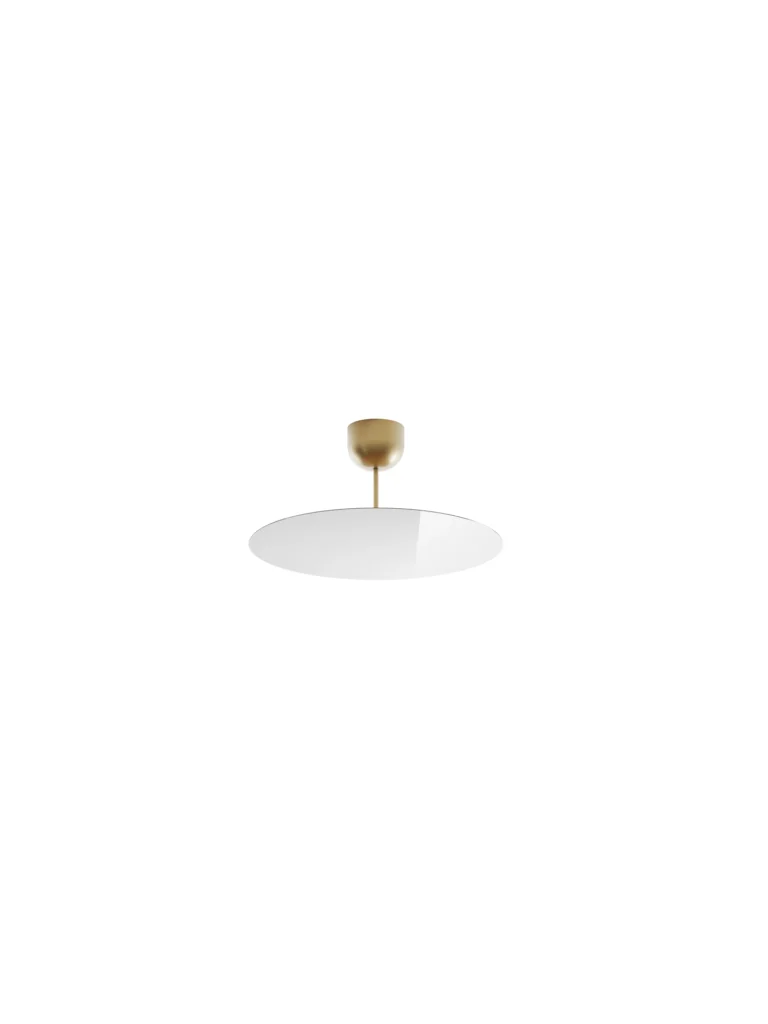

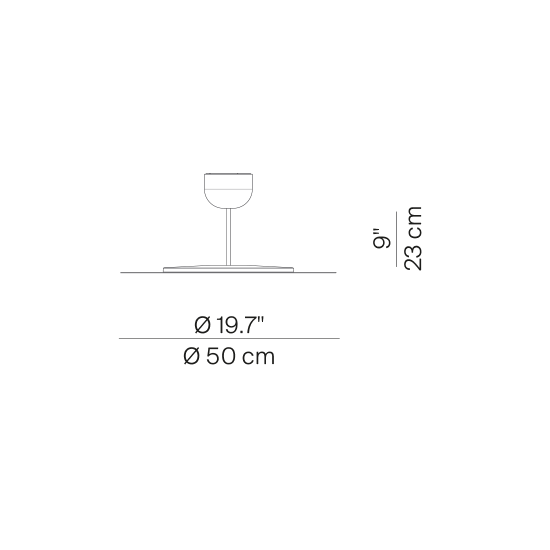

A11S50W A11/2 – 50

Millimetro stem 23cm – disc Ø 50cm

Main specifications

Typology Ceiling
Application Indoor
Material
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
stem Aluminium, steel and brass structure
Finishes
optic polished
ceiling rose blu, brass, royal blue, alu
stem alu, royal blue, brass
Dimensions (mm) H 310 (with ceiling rose), W 10, D ø 500
Weight (kg) 2.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

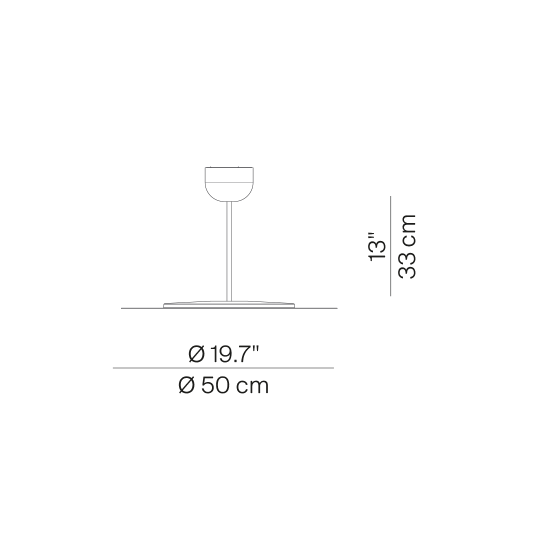

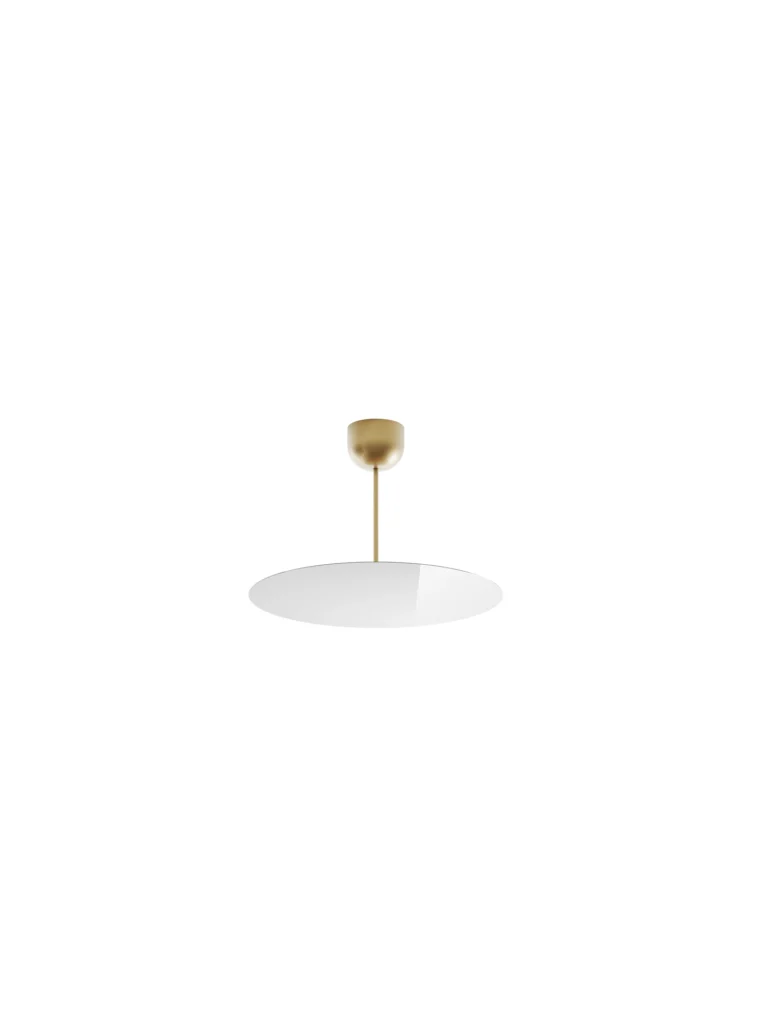

A11S50W A11/3 – 50

Millimetro stem 33cm – disc Ø 50cm

Main specifications

Typology Ceiling
Application Indoor
Material
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
stem Aluminium, steel and brass structure
Finishes
optic polished
ceiling rose blu, brass, royal blue, alu
stem alu, royal blue, brass
Dimensions (mm) H 410 (with ceiling rose), W 10, D ø 500
Weight (kg) 2.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

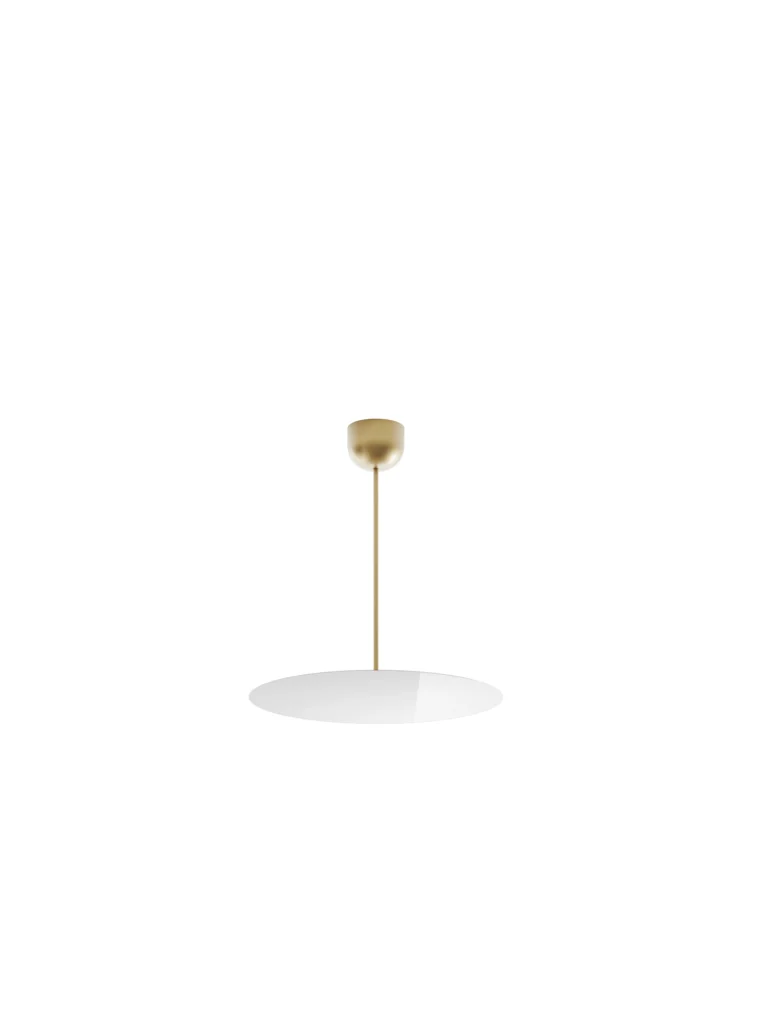

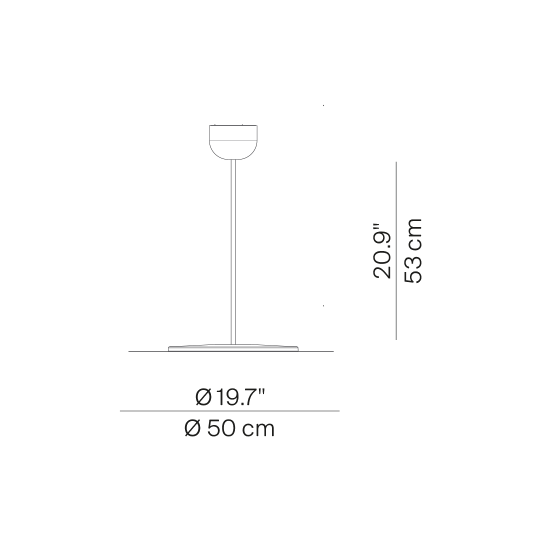

A11S50W A11/4 – 50

Millimetro stem 53cm – disc Ø 50cm

Main specifications

Typology Ceiling
Application Indoor
Material
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
stem Aluminium, steel and brass structure
Finishes
optic polished
ceiling rose blu, brass, royal blue, alu
stem alu, royal blue, brass
Dimensions (mm) H 610 (with ceiling rose), W 10, D ø 500
Weight (kg) 2.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

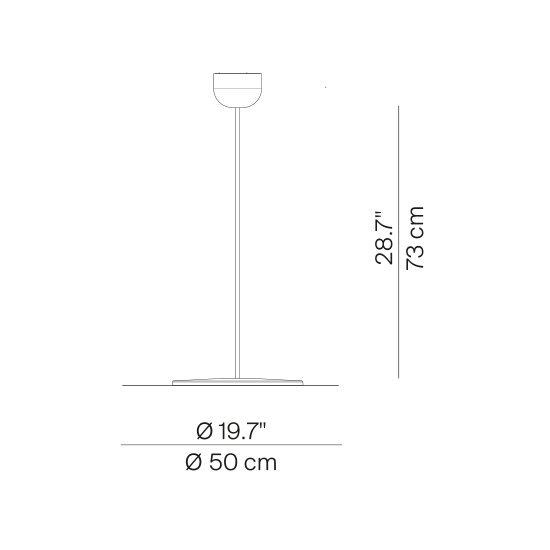

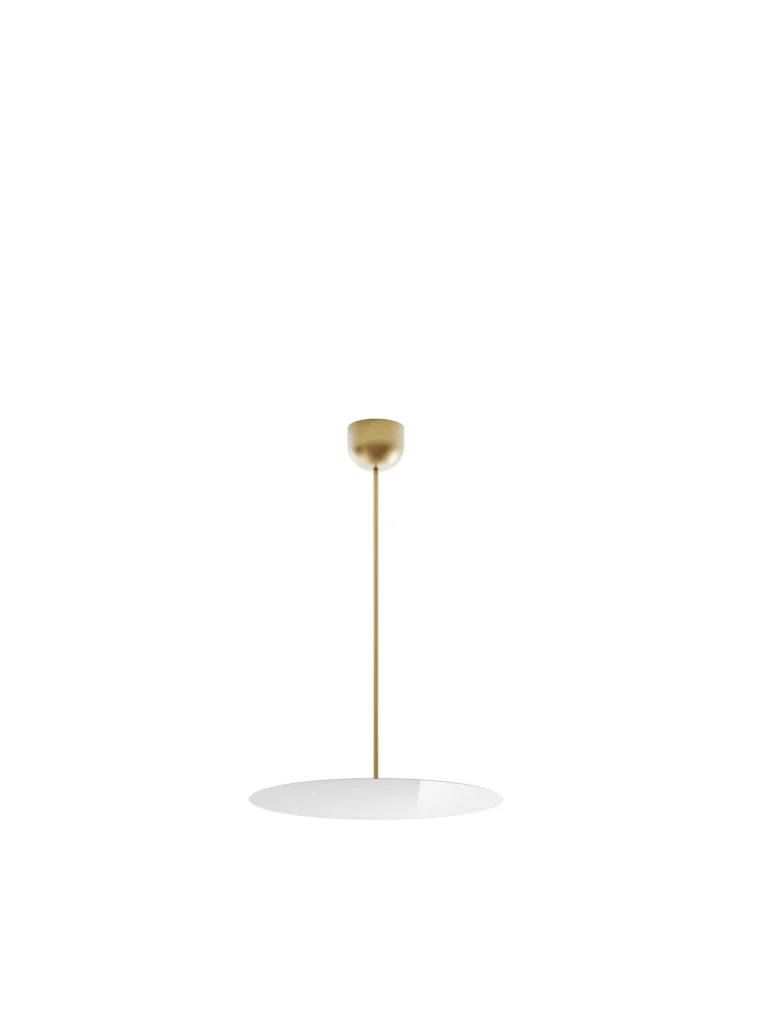

A11S50W A11/5 – 50

Millimetro stem 73cm- disc Ø 50cm

Main specifications

Typology Ceiling
Application Indoor
Material
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
stem Aluminium, steel and brass structure
Finishes
optic polished
ceiling rose blu, brass, royal blue, alu
stem alu, royal blue, brass
Dimensions (mm) H 810 (with ceiling rose), W 10, D ø 500
Weight (kg) 2.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

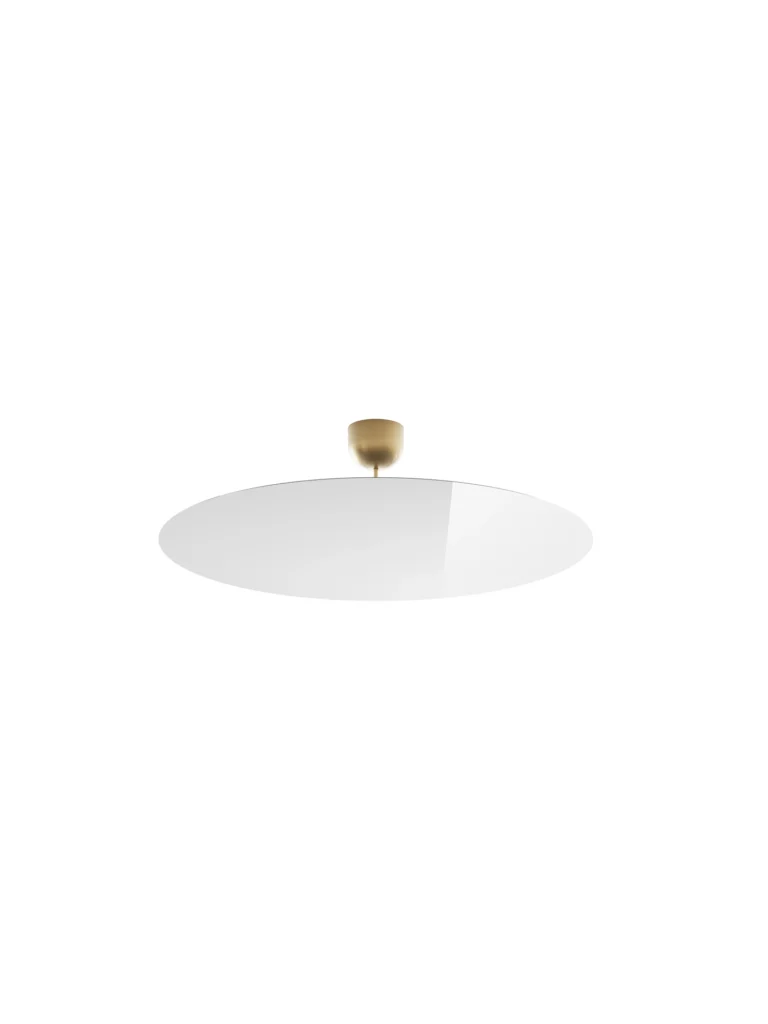

A11/2 A11S85W

Millimetro stem 23cm – disc Ø 85cm

Main specifications

Typology Ceiling
Application Indoor
Material
stem Aluminium, steel and brass structure
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
Finishes
stem alu, brass, royal blue
optic polished
ceiling rose blu, brass, royal blue, alu
Dimensions (mm) H 310 (with ceiling rose), W 10, D ø 850
Weight (kg) 0.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

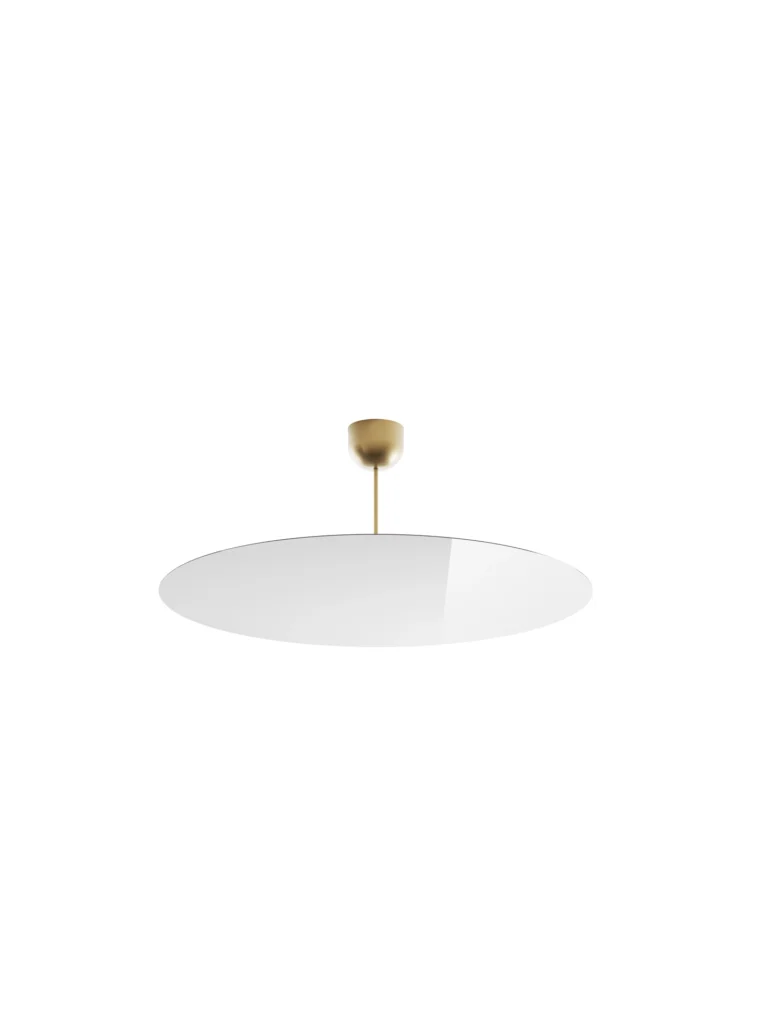

A11/3 A11S85W

Millimetro stem 33cm – disc Ø 85cm

Main specifications

Typology Ceiling
Application Indoor
Material
stem Aluminium, steel and brass structure
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
Finishes
stem alu, brass, royal blue
optic polished
ceiling rose blu, brass, royal blue, alu
Dimensions (mm) H 410 (with ceiling rose), W 10, D ø 850
Weight (kg) 0.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

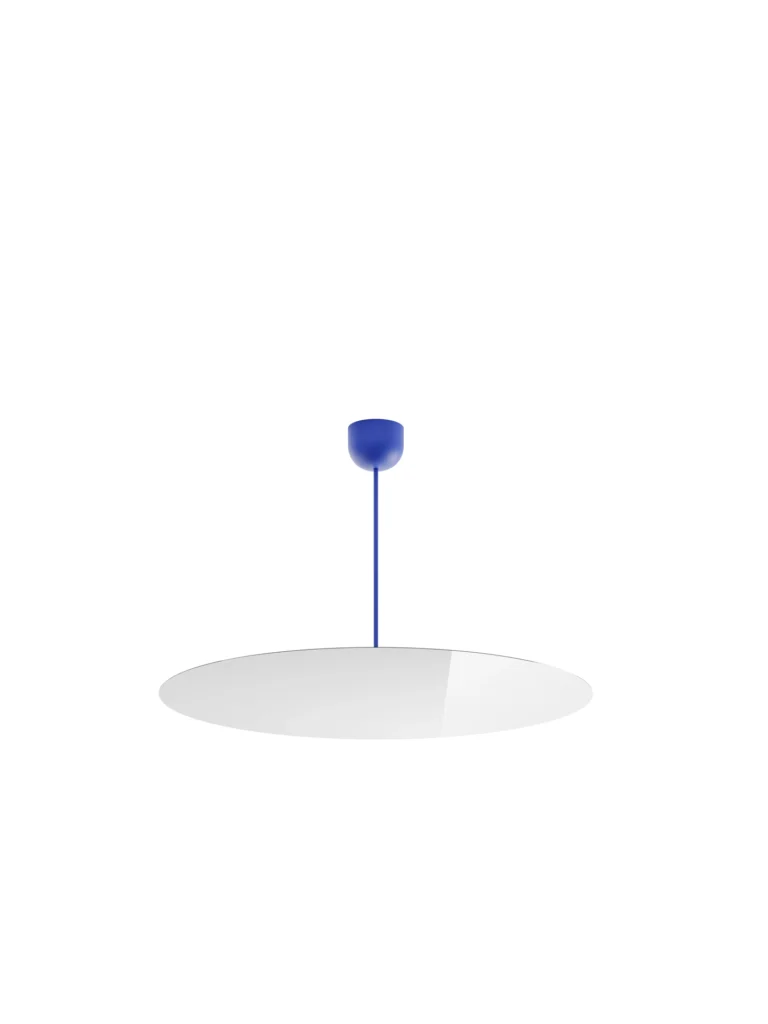

A11/4 A11S85W

Millimetro stem 53cm – disc Ø 85cm

Main specifications

Typology Ceiling
Application Indoor
Material
stem Aluminium, steel and brass structure
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
Finishes
stem alu, brass, royal blue
optic polished
ceiling rose blu, brass, royal blue, alu
Dimensions (mm) H 610 (with ceiling rose), W 10, D ø 850
Weight (kg) 0.2
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet

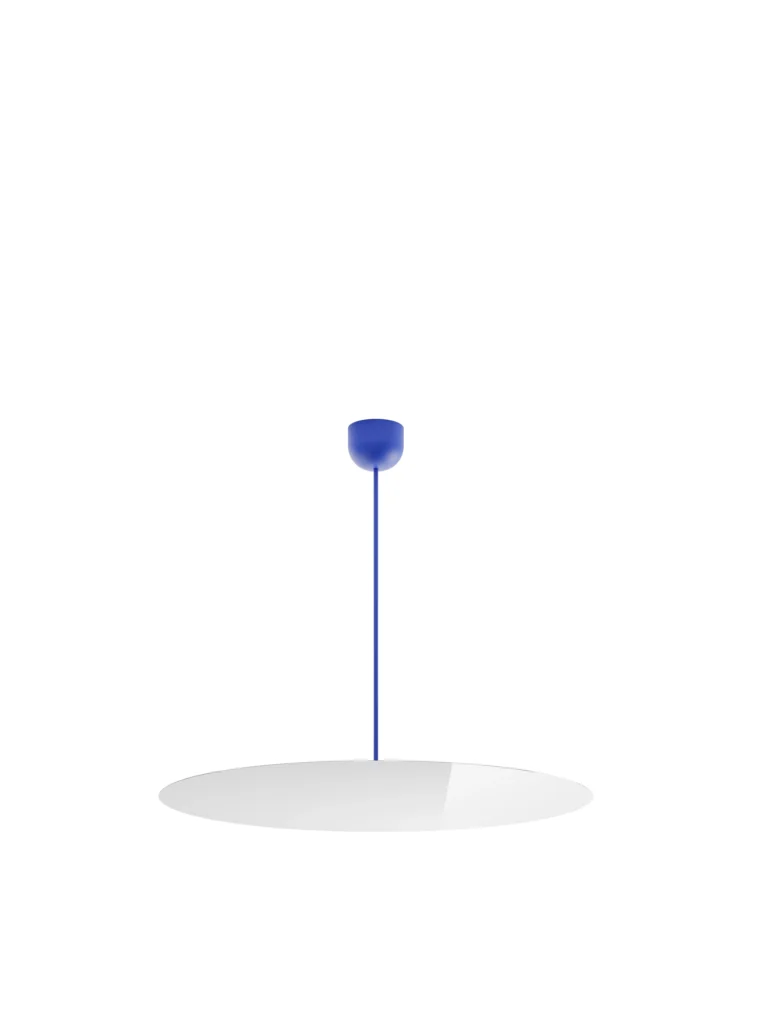

A11/5 A11S85W

Millimetro stem 73cm – disc Ø 85cm

Main specifications

Typology Ceiling
Application Indoor
Material
stem Aluminium, steel and brass structure
optic Steel structure, polycarbonate diffuser
ceiling rose Aluminium, steel and brass structure
Finishes
stem royal blue, brass, alu
optic polished
ceiling rose blu, brass, royal blue, alu
Dimensions (mm) H 810 (with ceiling rose), W 10, D ø 850
Weight (kg) 0.27
Light Source 37W, LED 37W (dali), 39W, LED 39W (phase cut), 2700K, CRI 90, 3393 lm for 2700K
Insulation Class I

Download

2D Drawings 3D Drawings Assembly instructions Photometric data BIM/Revit files Datasheet
